RadiAnt DICOM Viewer

Navigation: Basic Topics

Full-screen mode

Scroll Prev Top Next



Full-screen mode allows you to hide the frame of the window and increase the viewing area.

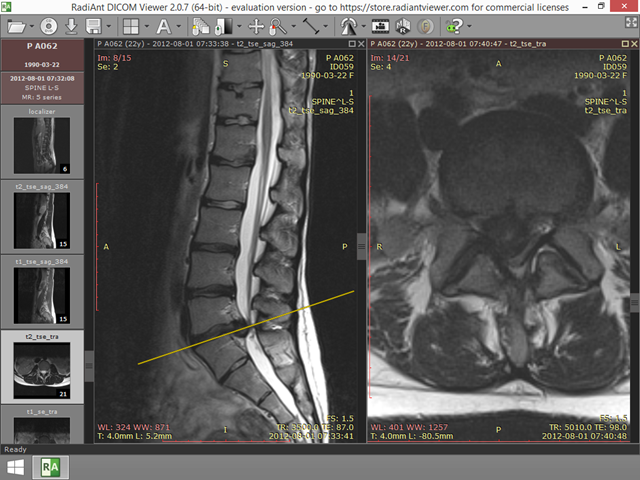

Normal mode

Normal mode

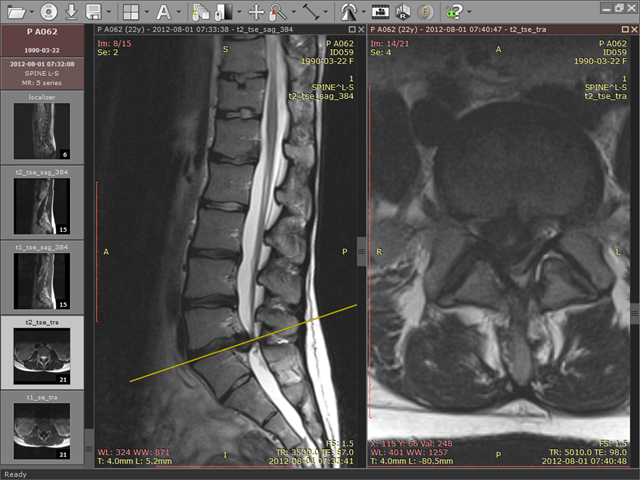

Full-screen mode

Full-screen mode



Click the  Full screen mode  button located on the right side of the toolbar or press  F .



RadiAnt_DICOM_Viewer_Full_Screen_Icon



To restore the normal window, use the  Exit full screen mode  toolbar button or again press the  F  key.



RadiAnt_DICOM_Viewer_Exit_Full_Screen_Icon



Switching between full screen and window modes can be also achieved by double-clicking the toolbar area.





To maximize the viewing area, both the series preview bar and the toolbar with the status bar can be temporarily hidden.



Click  Window  /  Series preview bar  menu item or use  Ctrl + Alt + F2  to toggle preview bar visibility.

Click  Window  /  Toolbar and status bar  menu item or use  Ctrl + Alt + F3  to toggle toolbar and status bar visibility.



RadiAnt_DICOM_Viewer_ToggleBars_DropDownMenu

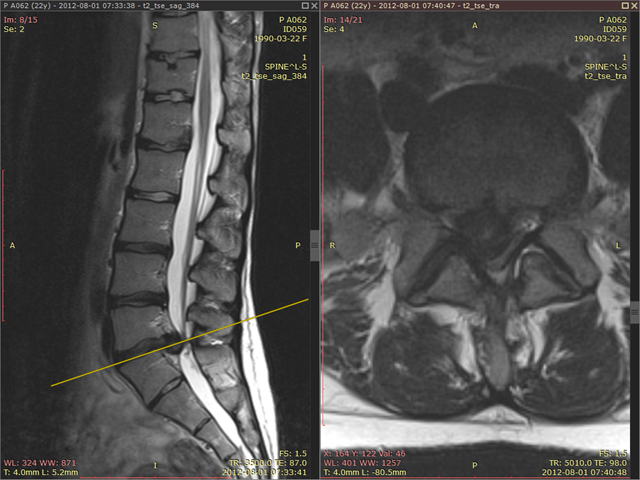

Full-screen mode with hidden toolbar, series bar and status bar

Full-screen mode with hidden toolbar, series bar and status bar



Distraction-free mode

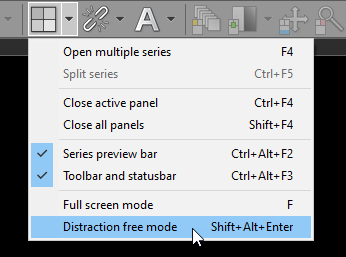

To quickly enter the distraction-free mode and hide everything except the images (toolbar, status bar, series bar, title bars, scrollbars), press  Shift + Alt + Enter  or click  Window  /  Distraction free mode  menu item. Revert back to the normal mode by using the same keyboard shortcut.



Radiant-Dicom-Viewer-Distraction-Free-Mode-Menu

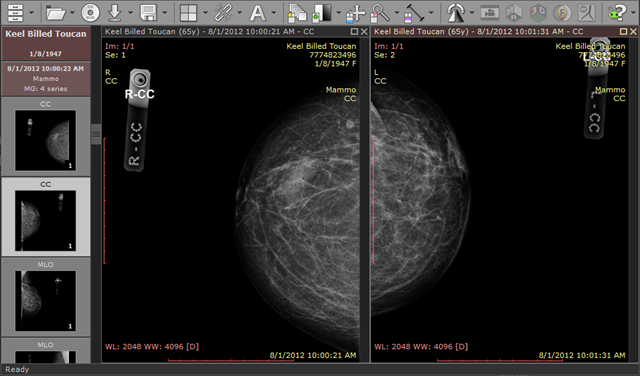

Radiant-Dicom-Viewer-Distraction-Free-Mode-Off

Full-screen mode

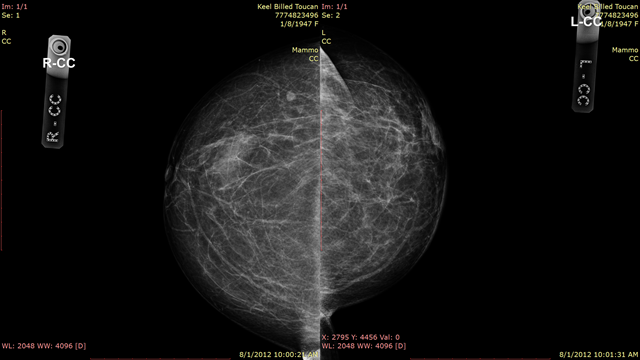

Radiant-Dicom-Viewer-Distraction-Free-Mode-On

Distraction-free mode
